Project Challenge

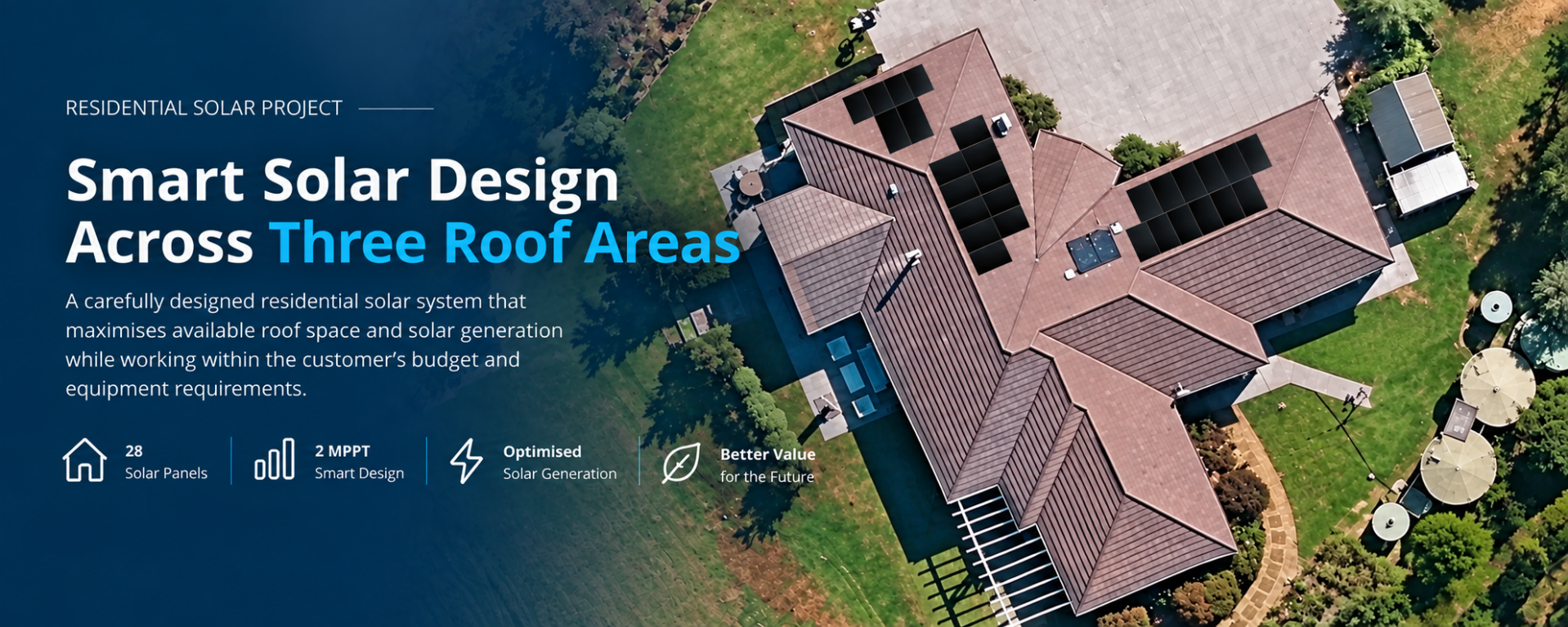

The customer wanted a clean, all-in-one solar and battery system while keeping within a limited budget. A cost-effective Deye all-in-one system was selected, but its two MPPTs needed to accommodate three separate roof areas.
Design Solution

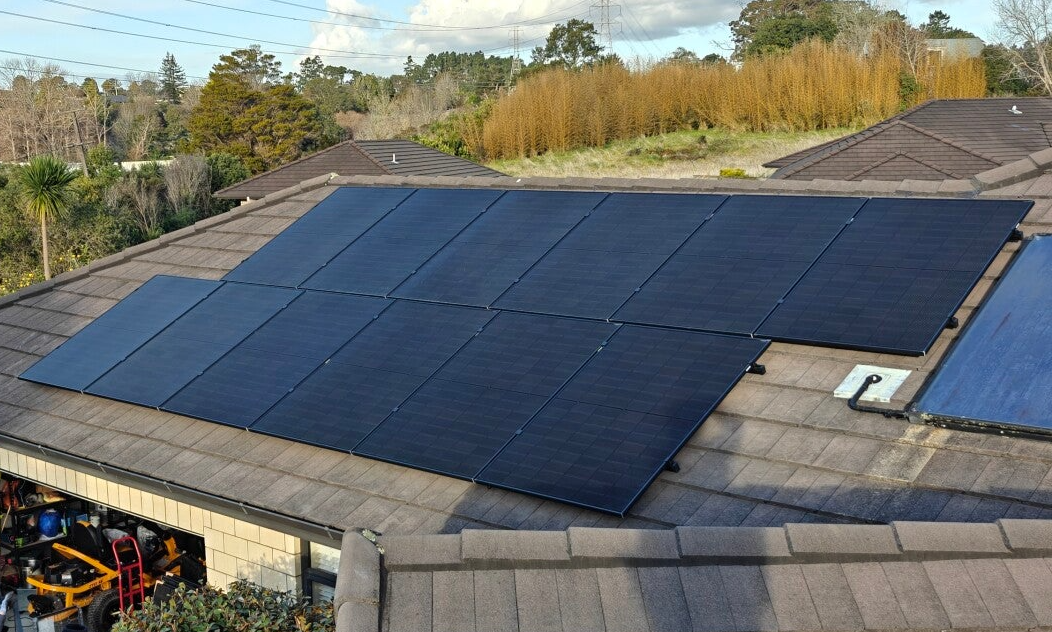

Two roof areas shared the same orientation. We reconfigured the 12-panel and 6-panel arrays into two matched 9-panel strings, connected in parallel to one MPPT. The remaining 10-panel array was connected independently to the second MPPT.
The Result
Approximately $3,000 Saved
Smart system design allowed us to stay within the customer’s budget without upgrading to a more expensive inverter solution or compromising on quality.
